Electrical Transformer

3-Phase Electrical Transformer

Quick Details:

Standard: IEC certified
Size: As per requirement
Rated Capacity: up to 1600KVa
Frequency: 50/60 Hz
Material: Steel
Packing: Standard Export Package by Bundles or Customized

Lead Time : 21 Days

Quantity as per requirement


Quantity:

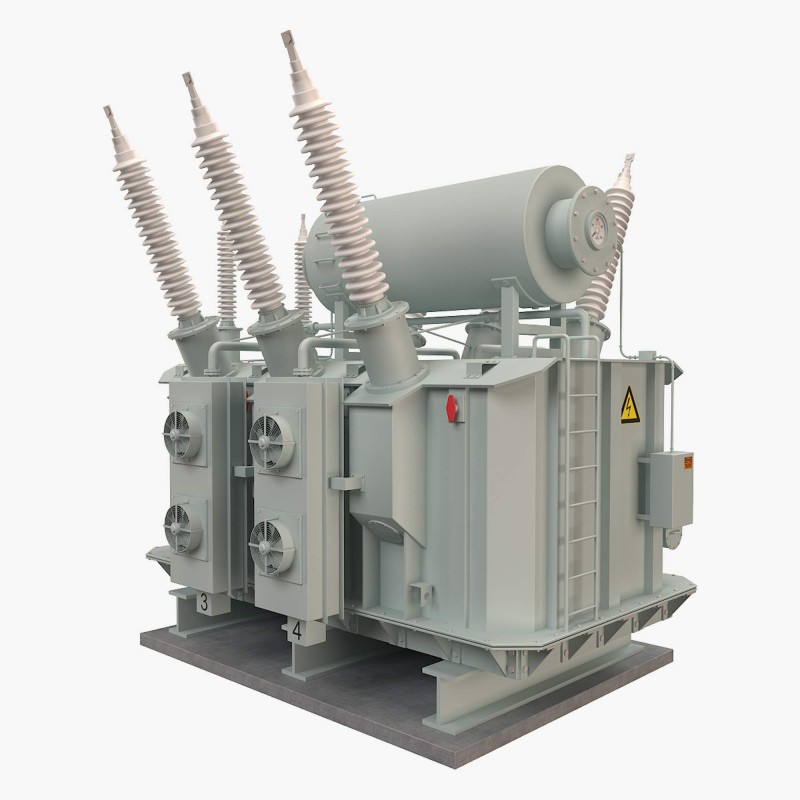

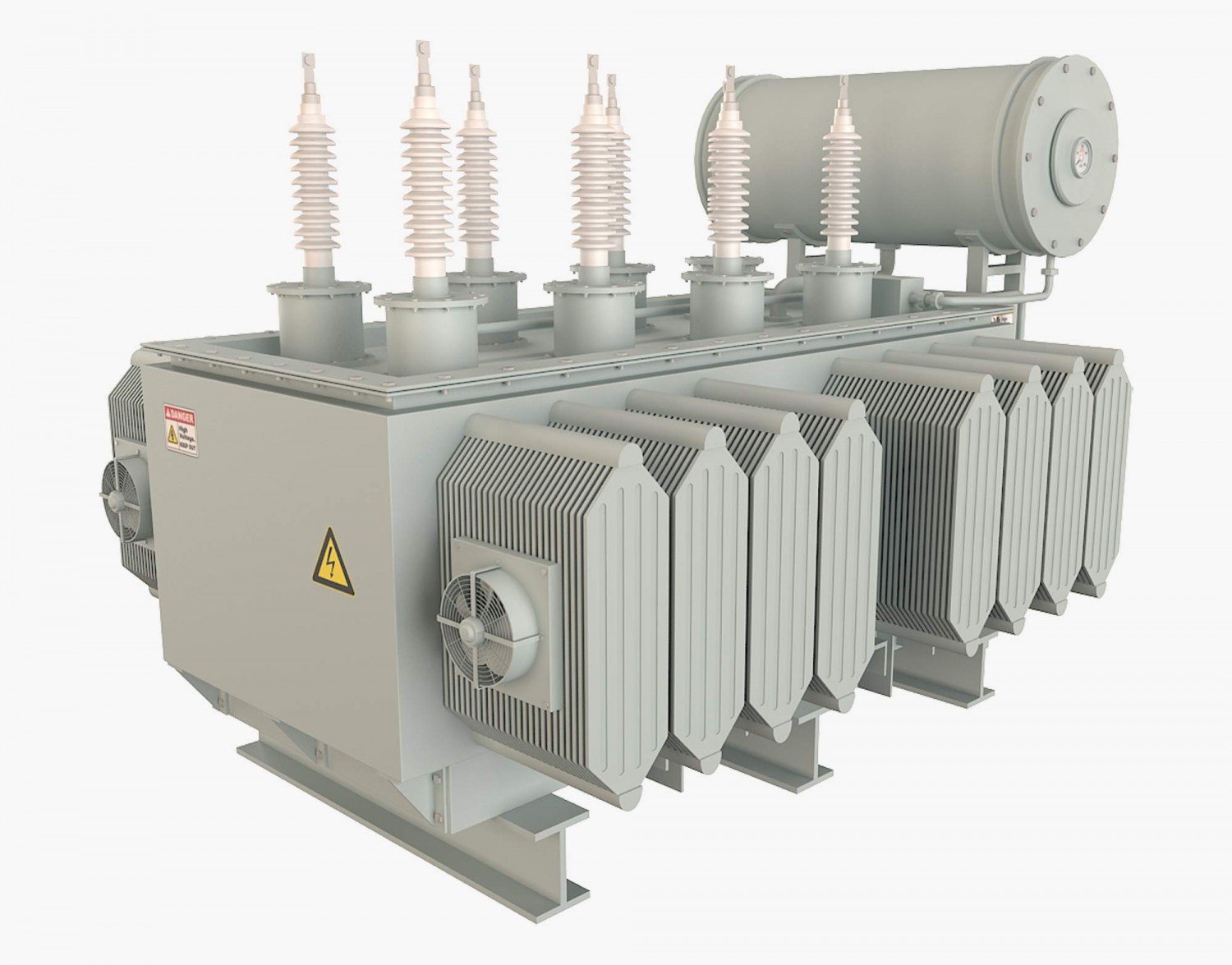

Power Transformer

A Power transformer is used in transmission network of higher voltages for step up and step down application backed by decades of experience and expertise in transformers.

We have developed a comprehensive range of power and extra high voltage transformers. These products are engineered to perfection and are developed using quality raw material and advanced manufacturing facilities and techniques.

Technical specifications
  • RATINGS                                 -   UPTO 50 MVA(50,000 KVA)
  • VOLTAGE CLASS                  -   33,66,100,110,132 KV OTHER AS REQUIRED)
  • APPLICABLE STANDARDS        -   IS2026,IEC 60076,ANSI IEEE
  • COOLING – ONAN, ONAF–OIL NATURAL AIR FORCED (OTHER AS REQUIRED)
  • SERVICE - OUTDOOR /INDOOR
  • FREQUENCY  -  50HZ ,60HZ
  • VECTOR GROUP  -  DYN5 ,DYN11/YNVNO (OTHER AS REQUIRED)
  • TAPING RANGE - OFF CIRCUIT AND ON LOAD TAP CHANGERS AS PER CUSTOMER SPEC.
  • IMPEDANCE - IN LINE WITH APPLICABLE STANDARDS.

Packaging

The packaging of the order is done in bundles according to standard export packaging, or it can be conveniently customized according to particular needs of the buyers.

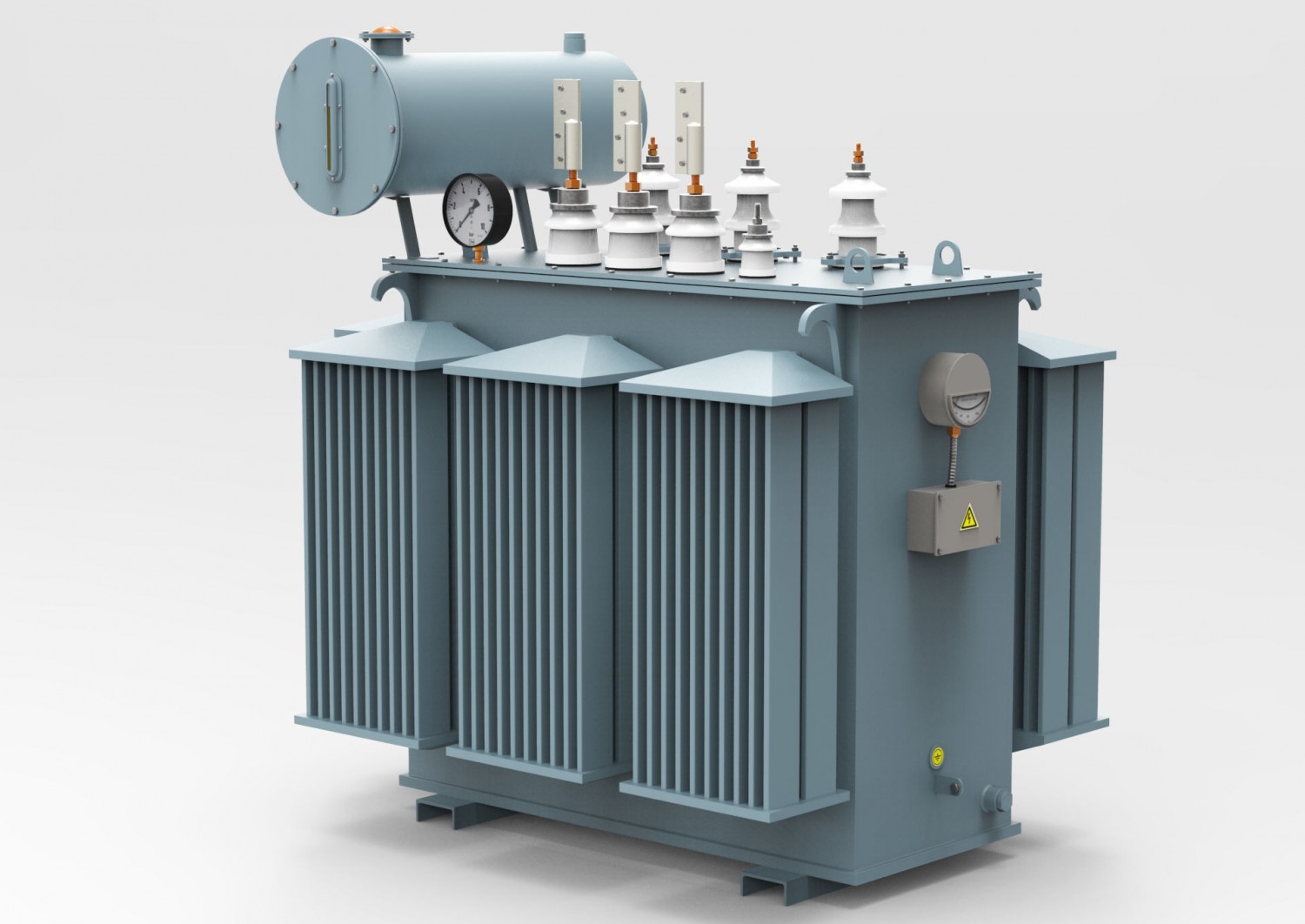

Distribution Transformer

Power Distribution System that steps down the voltage to a usable level at our homes /offices is called distribution transformer.

The Distribution Transformers are manufactured using quality raw material and tested on various parameters for efficient working life our energy efficient and durable transformers are capable of with standing variable voltage supply.

Technical specifications:

  • Ratings                 - up to 5000 k v a
  • Voltage class       -  66.11.15.20.33kv
  • Cooling                 -  ONAN –Oil Natural Air Natural
  • Service                  -   Indoor / Outdoor
  • Frequency           -  50 Hz ,60 Hz
  • Vector Group      -  Dyn5 /Dyn11 (Other as required)
  • Winding Material -  Copper /Aluminum off circuit and on load tap
  • Taping Range      -  Changers as per customer spec
  • Impedance           -  In line with applicable standards

Amorphous Core Transformer

We focus on energy efficiency and have been developing Amorphous Core Transformers that helps in achieving very low no load losses.

Technical Specifications

  • Ratings                                 - Single Phase 16 KVA-150 KVA  Three Phase 25 KVA 1000 KVA
  •  Voltage Class                      - 66,11,15,20,33k (Other As Required)
  • Applicable Standards       -  ISO 1180, IS 2026, IEC 6007
  • Cooling                               -  ONAN- Oil Natural Air Natural
  • Service                                -   Indoor /Outdoor
  • Frequency                          -  50HZ , 60HZ
  • Vector group                     -  Dyn5/Dyn11 (Other as Required )
  • Winding material               -  Copper / Aluminum
  • Taping range                      -   Off circuit and on load Tap (-  Changers as per customer spec.)
  • Impedance                         -   In line with applicable standards
